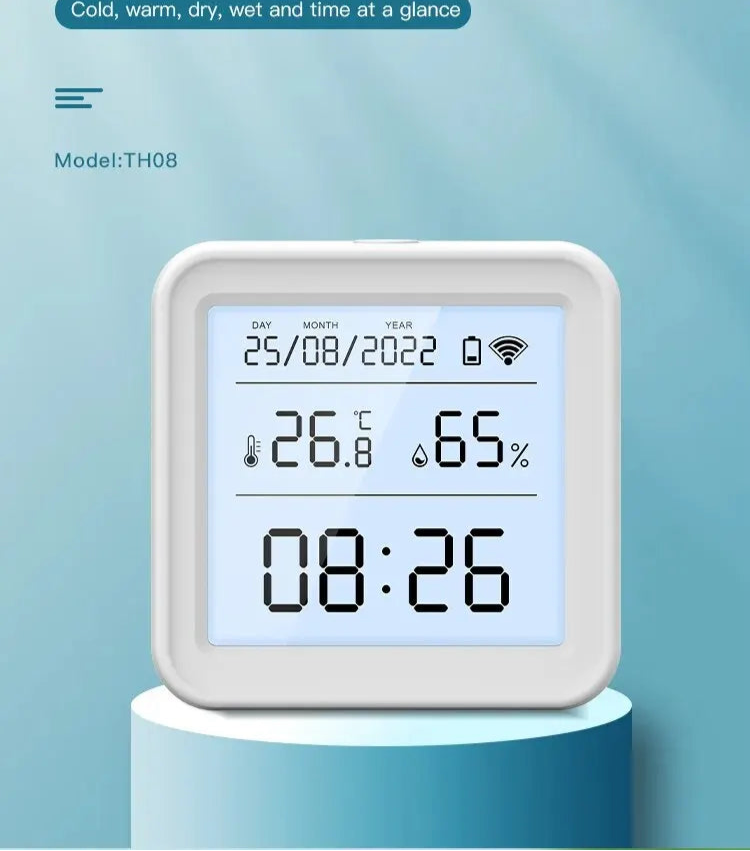

Smart Thermometer Humidity Sensor Wi-Fi

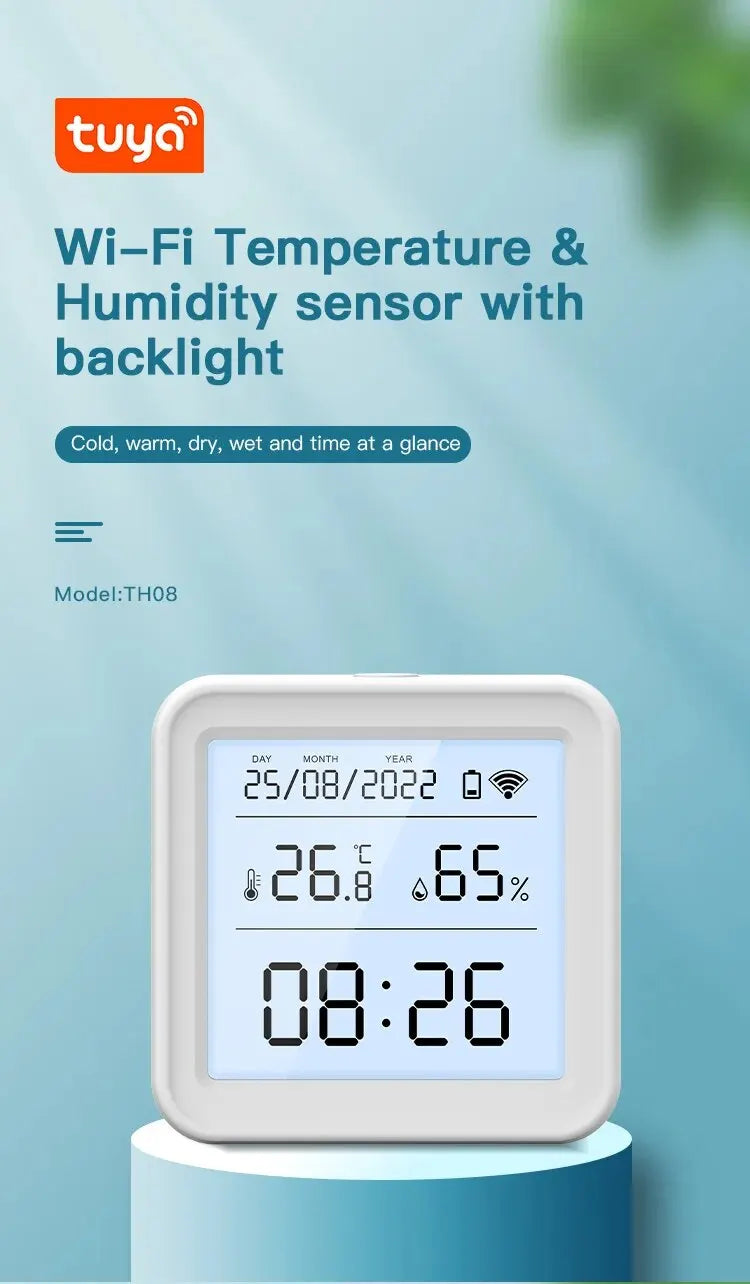

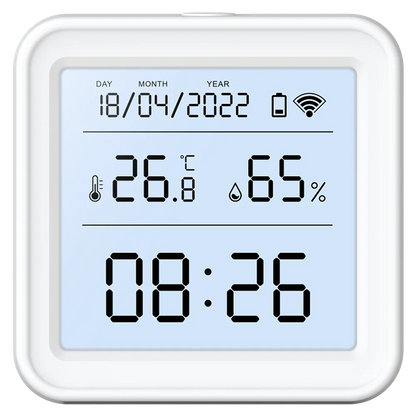

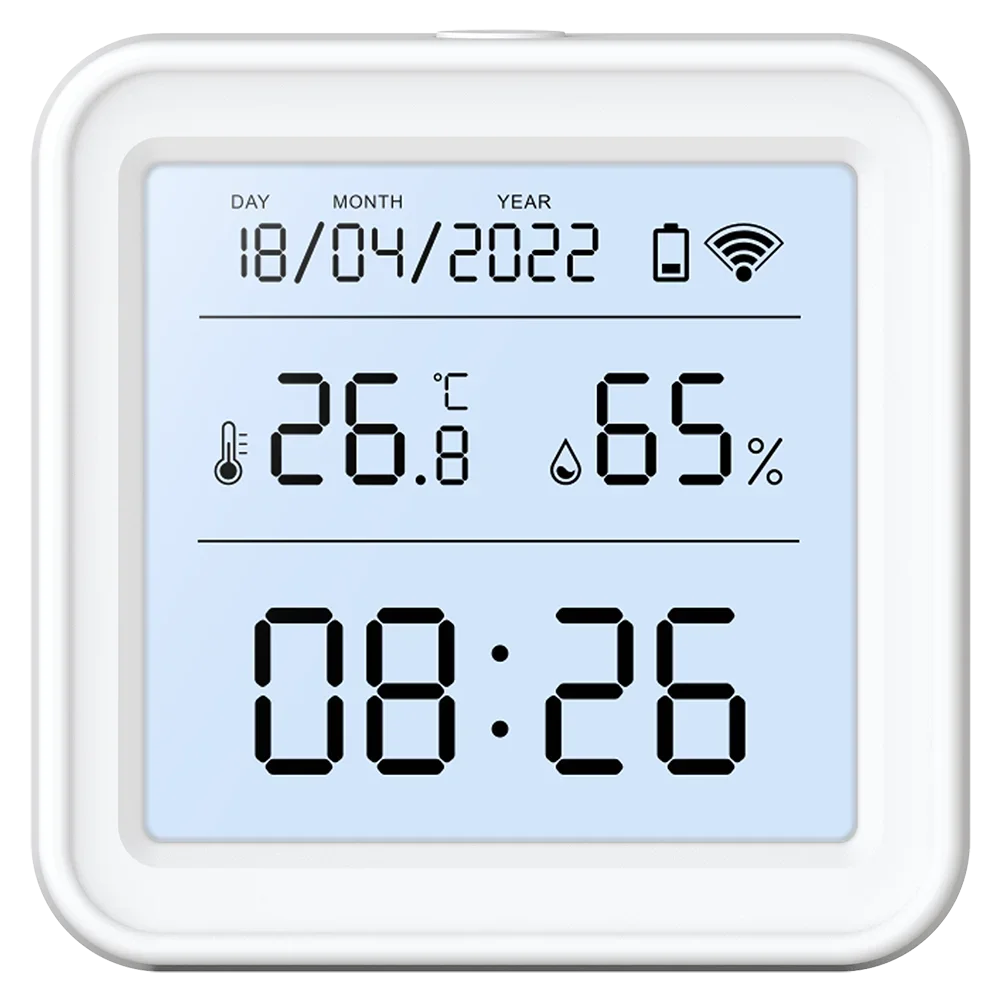

Wi-Fi Temperature and Humidity Sensor with Backlight – Smart Hygrometer and Thermometer, Compatible with Alexa and Google Assistant

You can install it in different areas of your home, living room, children's bedrooms, bathroom, or even in your work environment.

Main Features:

• High accuracy – The sensor uses components from renowned suppliers, ensuring accurate temperature and humidity measurements.
• Remote monitoring via APP – Monitor temperature and humidity variations directly on the Smart Life APP , with detailed graphs for historical analysis.

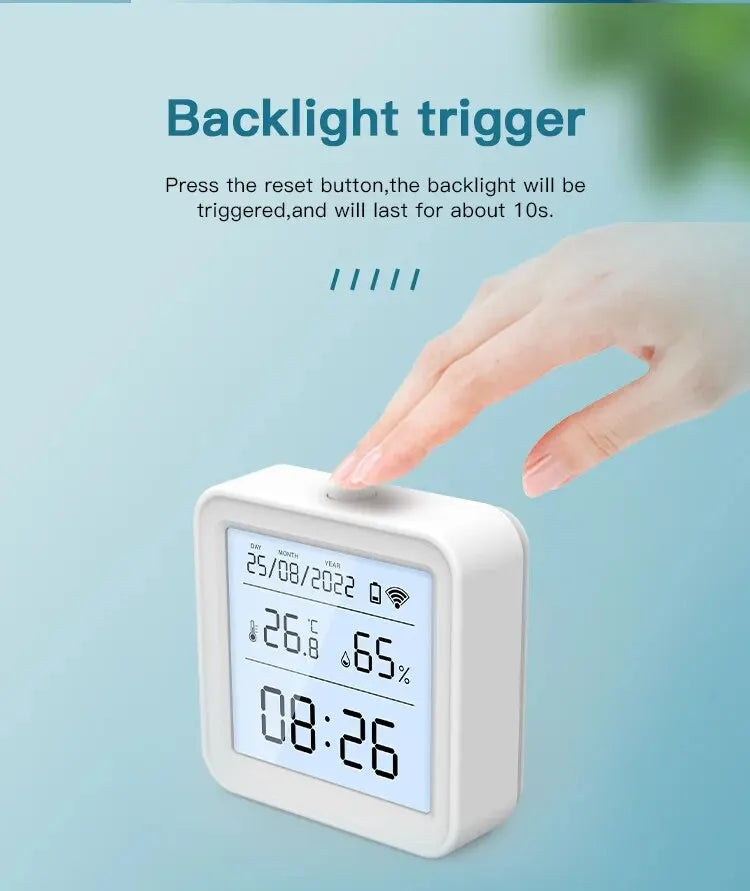

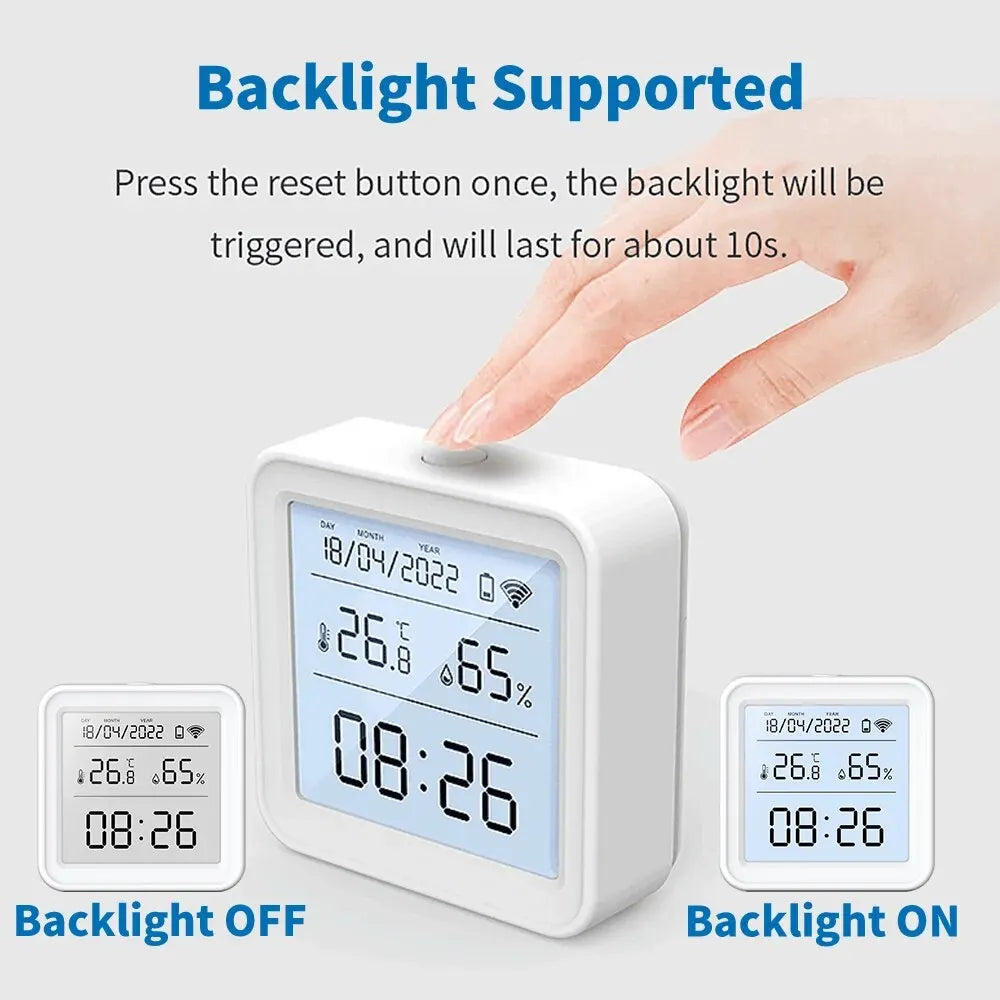

• Backlighting – Features adjustable lighting to make the screen easier to view, especially at night.
• Wide Viewing Angle – The LCD design provides a wider viewing angle compared to similar products.

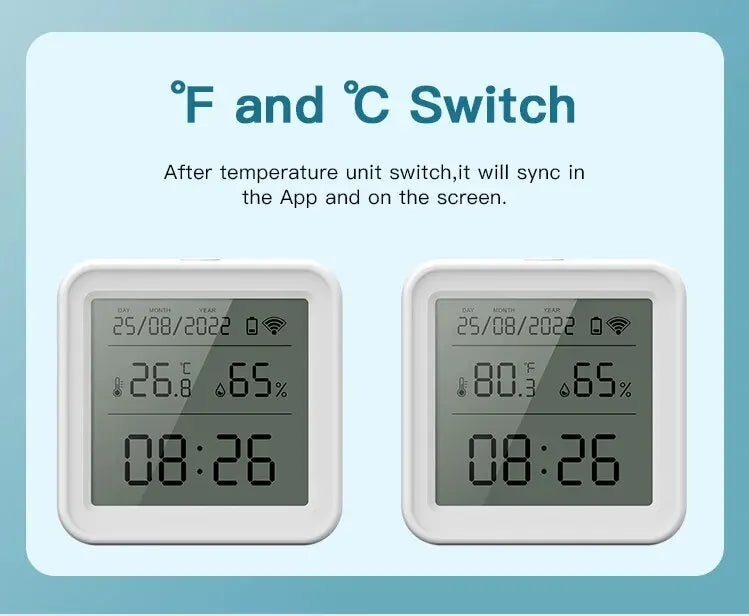

• Temperature unit change – Switch between Celsius (°C) and Fahrenheit (°F), depending on your preference.

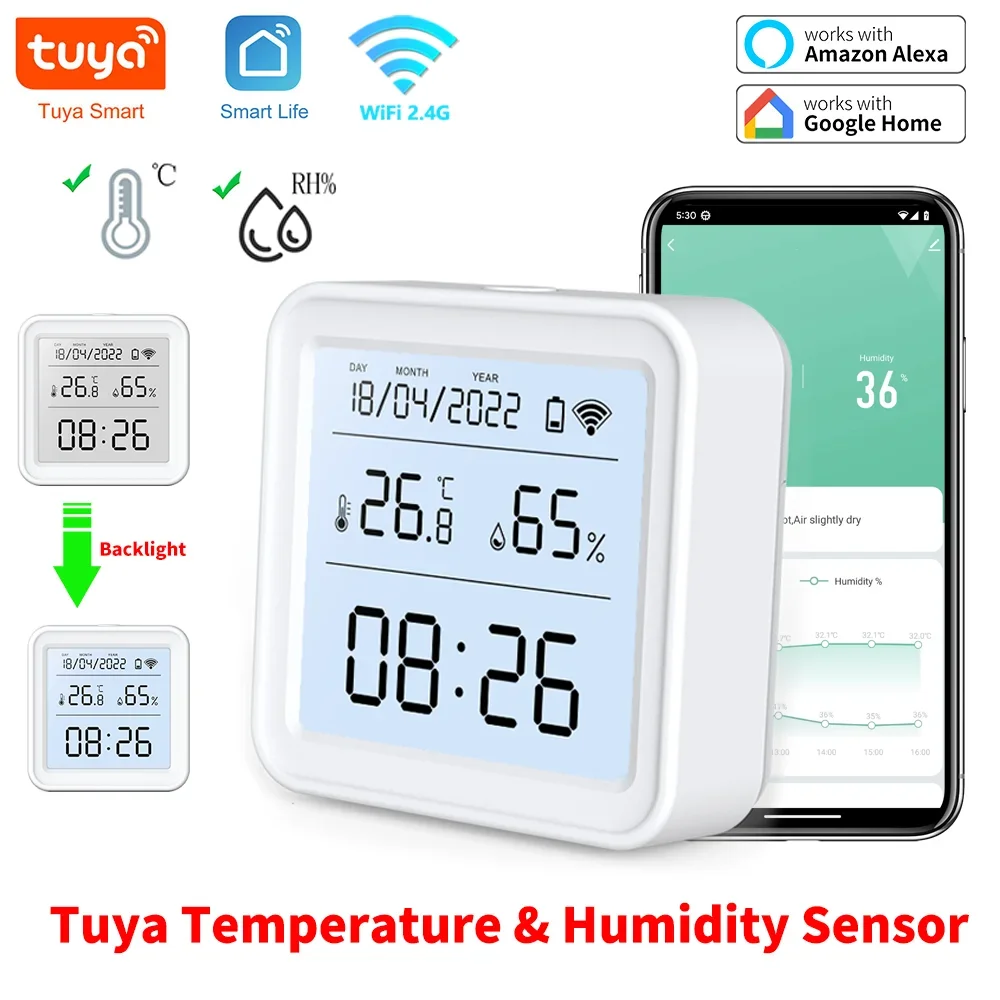

• Compatible with voice assistants – Works with Amazon Alexa and Google Home , allowing you to check temperature and humidity using voice commands.

Note: The sensor in the battery version does not update data in real time .

Advanced Functions:

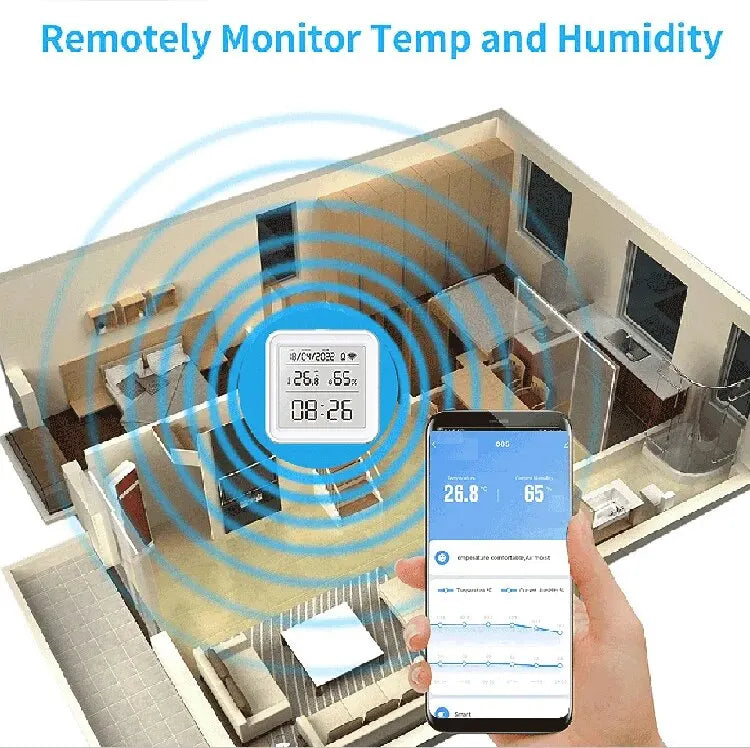

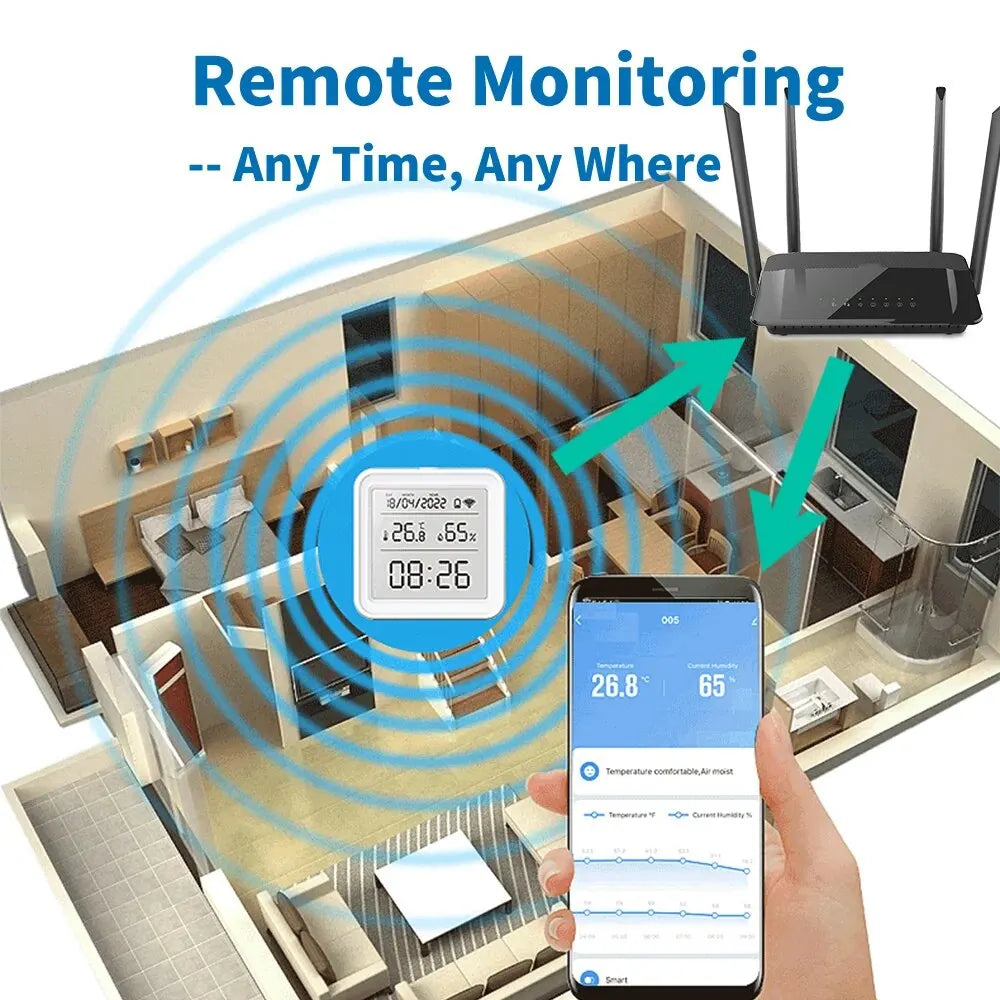

• Remote monitoring via APP – After configuration, you can view the data on the sensor display and in the app simultaneously . Control via APP can be accessed from anywhere in the world.
• Accurate and fast measurement – ​​Within 30 minutes after setup , the sensor calibrates and starts recording accurate values.

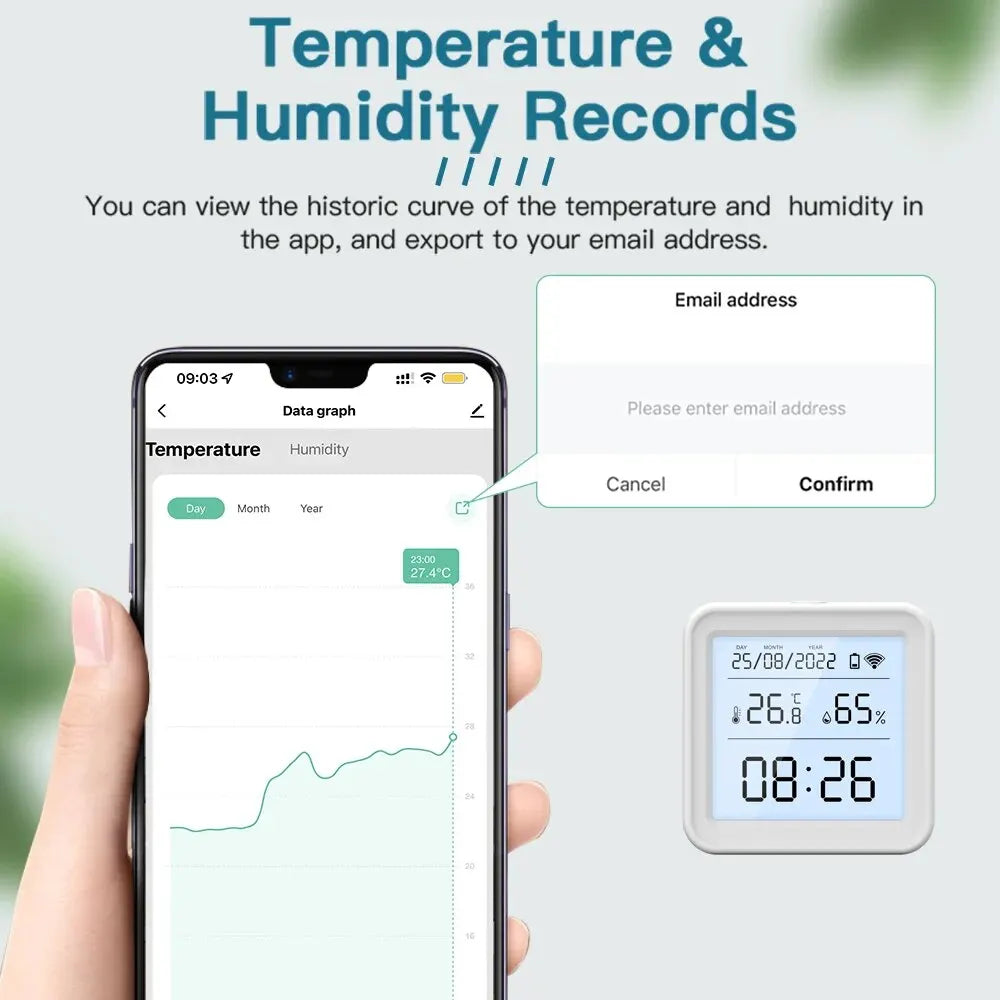

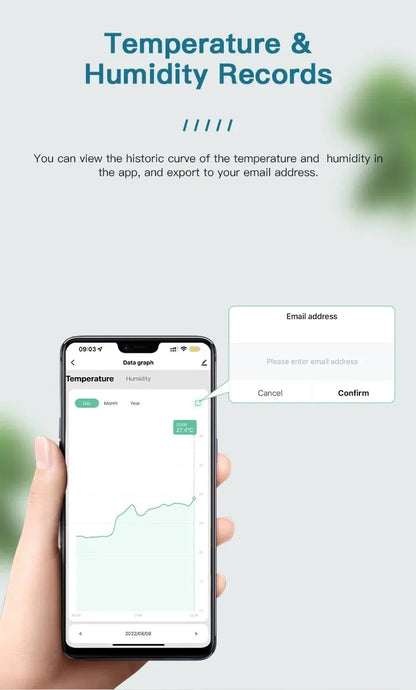

• Historical record – The APP keeps a history of temperature and humidity , allowing data to be exported to email.
• Low battery level – The sensor sends a notification in the APP when the battery is low.

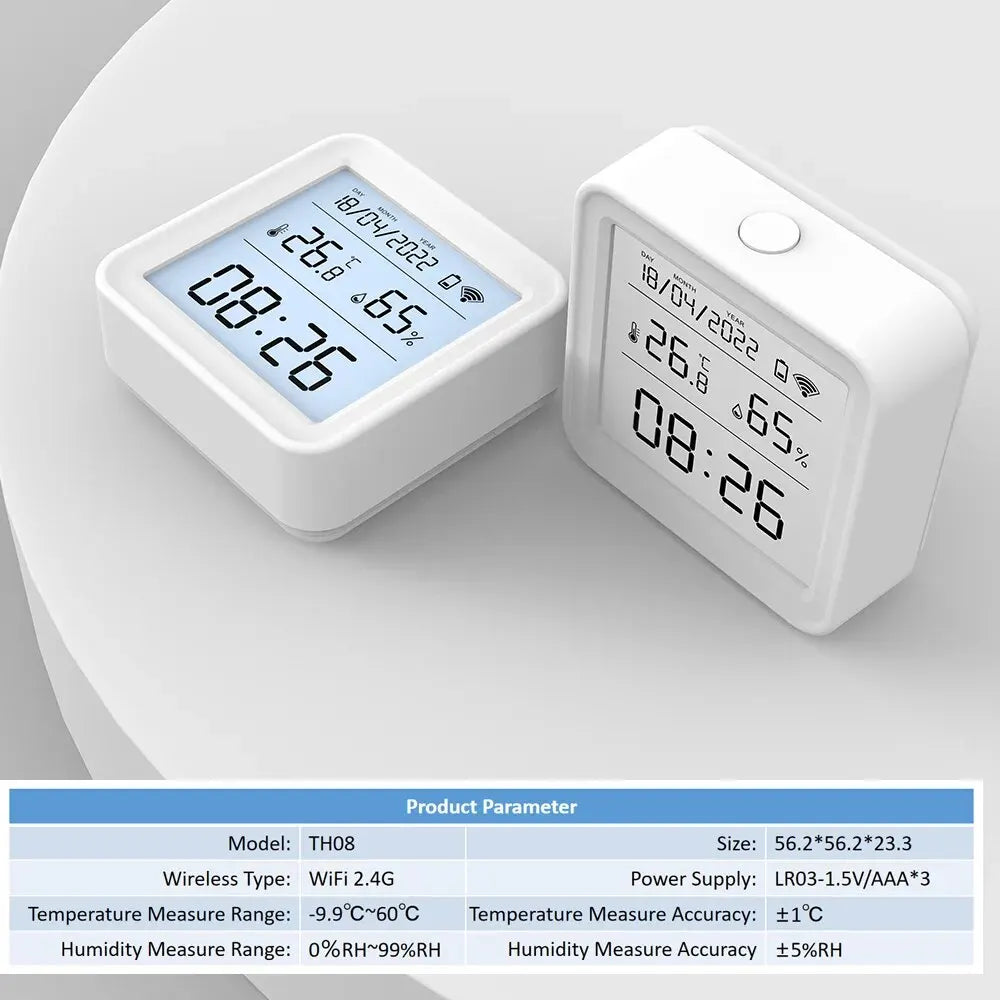

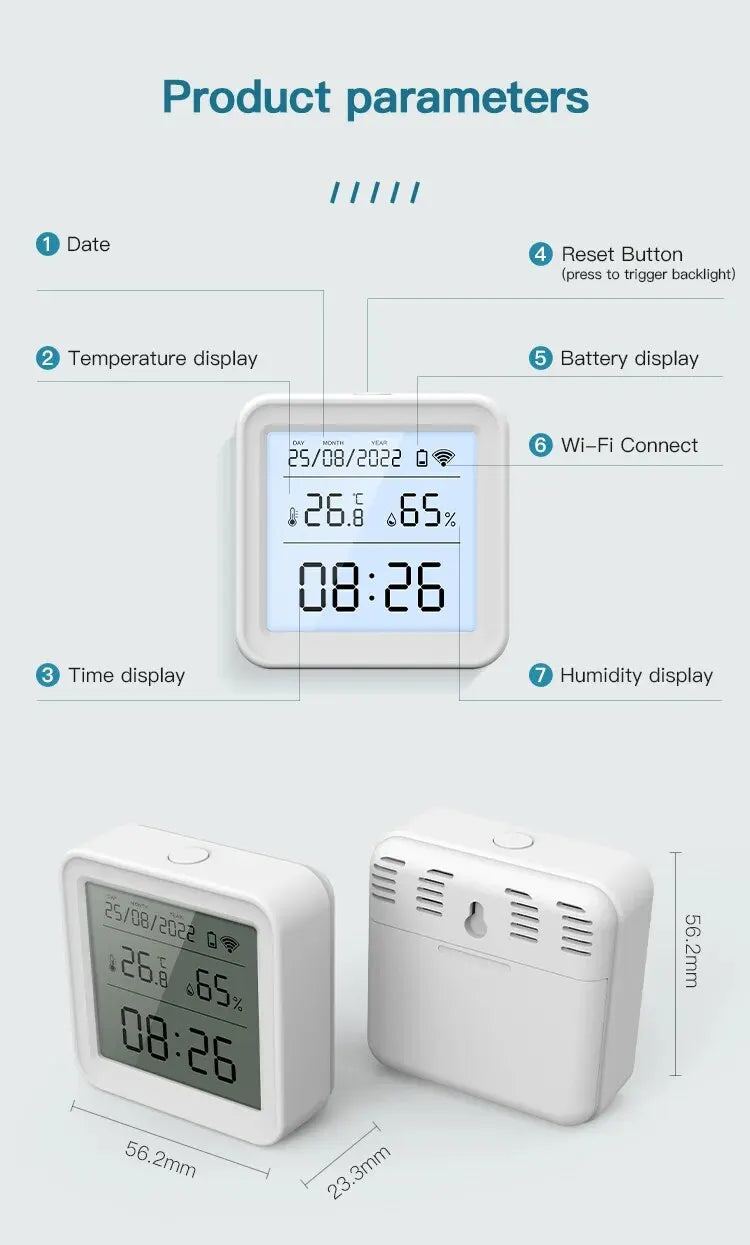

Technical Specifications:

• Power: 3 AAA LR03-1.5V batteries (not included)
• Backlight: Yes
• Connectivity: Wi-Fi 2.4GHz IEEE 802.11 b/g/n
• Temperature measurement range: -9.9°C to 60°C
• Temperature accuracy: ±1°C
• Humidity measurement range: 0%RH to 99%RH
• Humidity accuracy: ±5% RH

Data Update Frequency:

1. The sensor updates the data once an hour or when the variation reaches the pre-defined value.
2. You cannot set the refresh rate manually .
3. Alarms must be configured directly in the APP .
4. For real-time update, the USB powered version (TH06/TH16) is recommended.

Battery Use and Maintenance:

• Use only LR03-1.5V alkaline batteries . 1.2V rechargeable batteries may cause erroneous voltage readings .
• Do not mix batteries of different brands or models .
• Do not use old and new batteries together .
• Avoid low-quality batteries , as they may result in excessive consumption or configuration failure.

Installation and Connectivity:

• The sensor must be positioned in a location with a strong Wi-Fi signal , otherwise battery consumption may increase.
• The device automatically disables the network connection when there is no need to send data, to save power.

Sensor Errors and Accuracy:

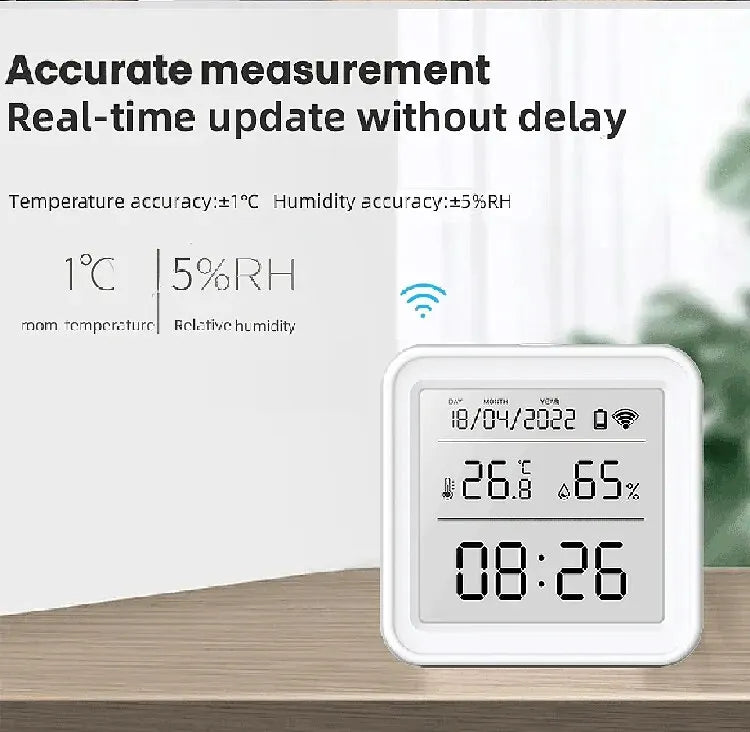

• Small errors in temperature and humidity measurements are normal. The margin of error is ±1°C for temperature and ±5% RH for humidity .
• Sensor calibration can take between 30 minutes to 1 hour to accurately reflect the ambient temperature.

Temperature and Humidity History:

• Daily history is recorded with a minimum granularity of 1 hour .
• History is stored for 7 days .
• The APP displays hourly averages of measurements over time.

Integration with Voice Assistants:

• Compatible with Alexa and Google Home , allowing you to check temperature and humidity by voice .
• It is not possible to create temperature automations directly in voice assistants , only via the Tuya Smart Life APP.
• Not compatible with Yandex Alice .

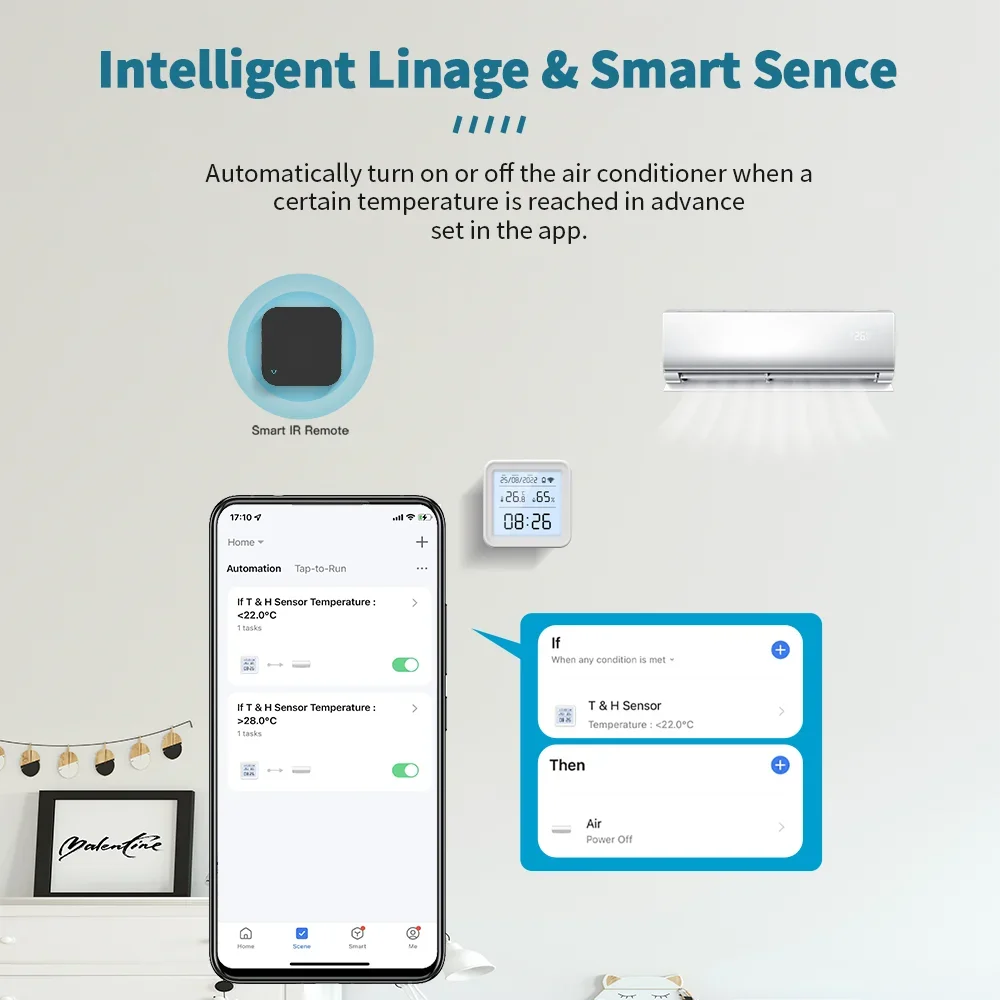

Automatic Trigger Mode (Trigger Mechanism):

• The sensor uses an edge trigger (Edge Triggered – ET) , that is, it only triggers an action when the temperature or humidity crosses a certain value .
• Drive examples:
  • If the temperature rises from 24°C to 25°C , the device may turn on a fan.
  • If the temperature has already been above 25°C since the beginning , the activation will not be performed again .

Reasons for Fast Battery Drain:

1. Use of wrong or low quality batteries.
2. Installation in a location where temperature and humidity vary frequently , requiring constant updates.
3. Exposure to very low temperatures (below 0°C) , which reduce battery life .
4. Weak Wi-Fi signal , forcing the sensor to increase its transmission power.
5. High humidity can cause battery corrosion, leading to leaks.
